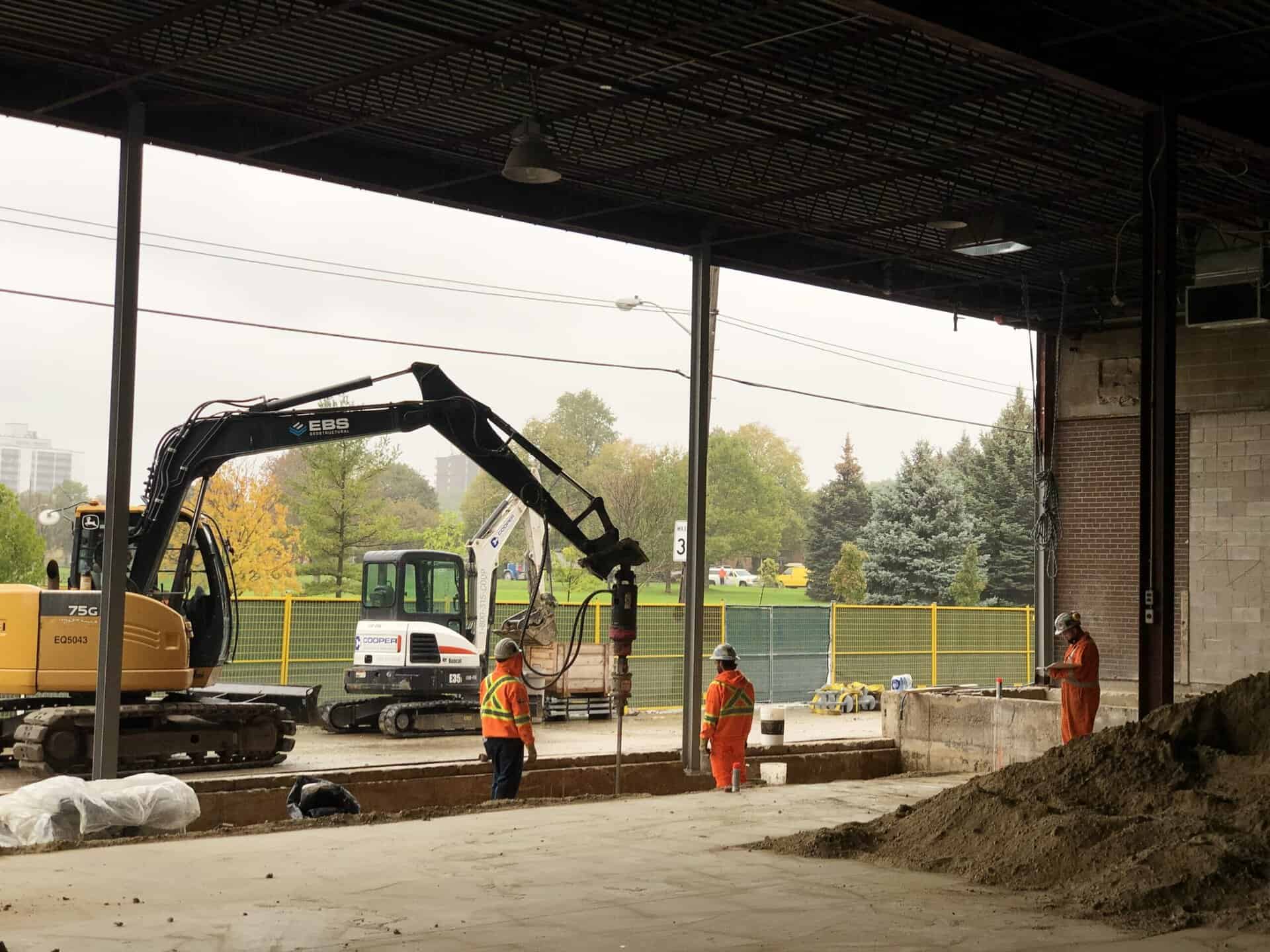

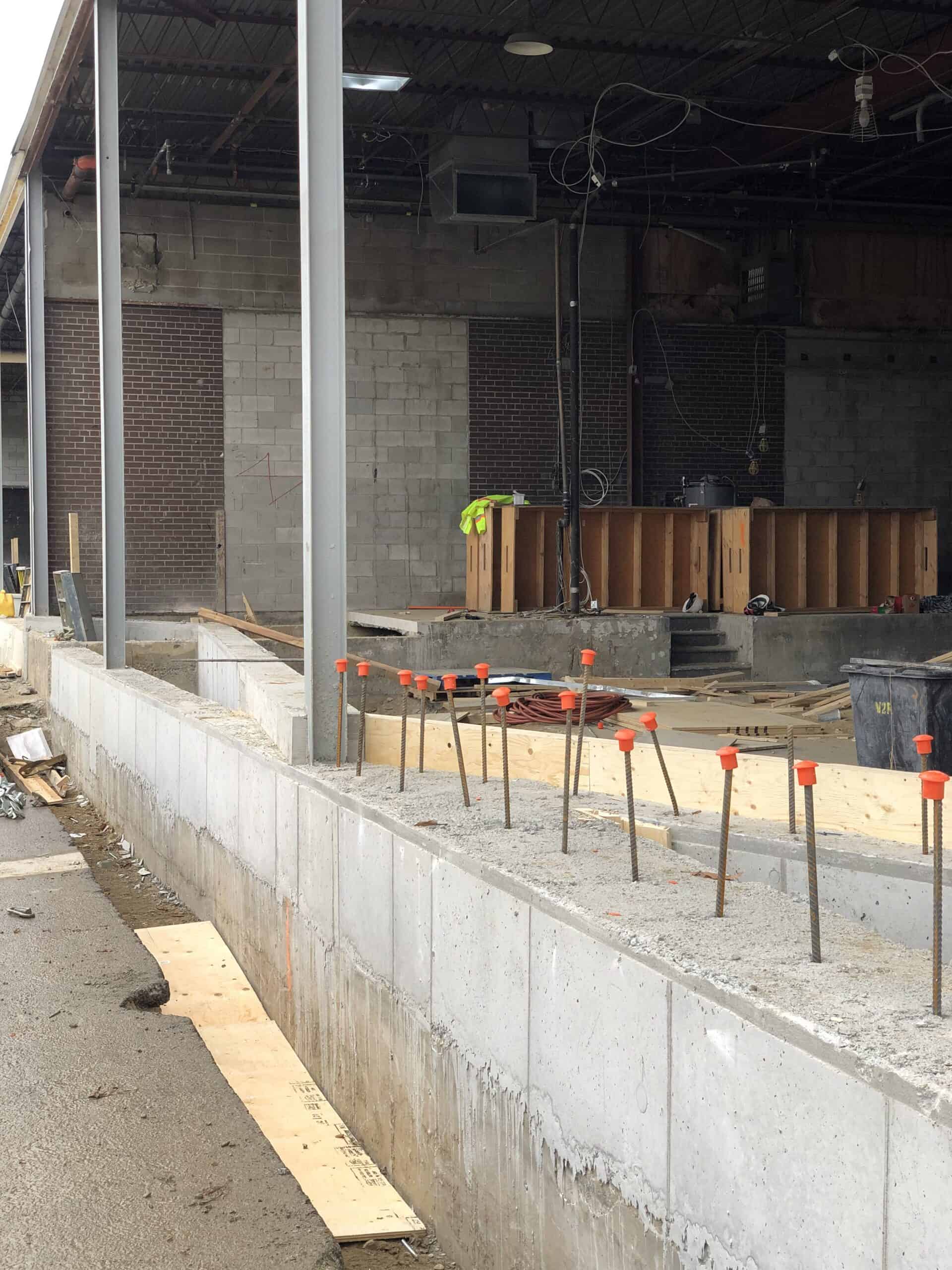

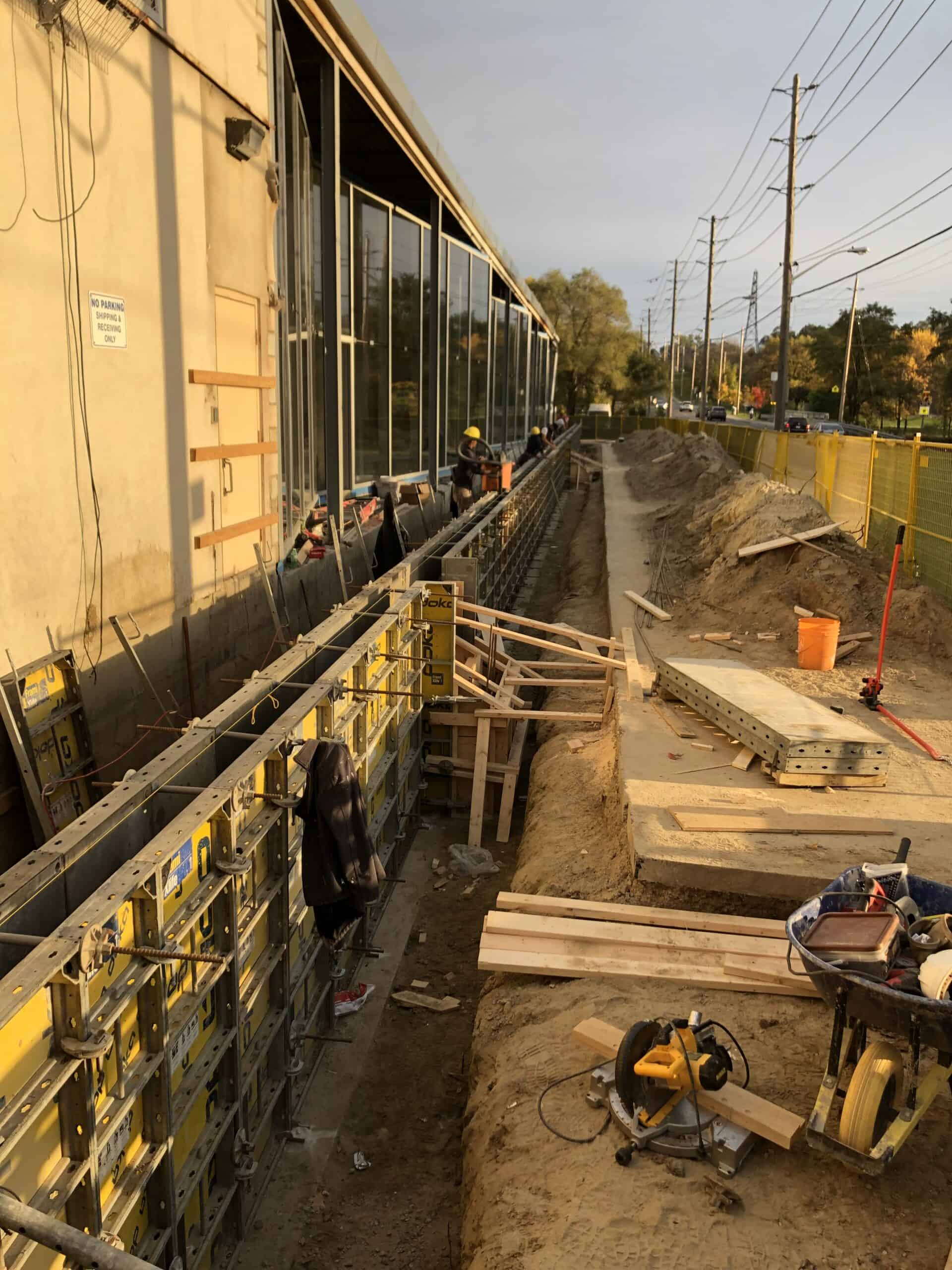

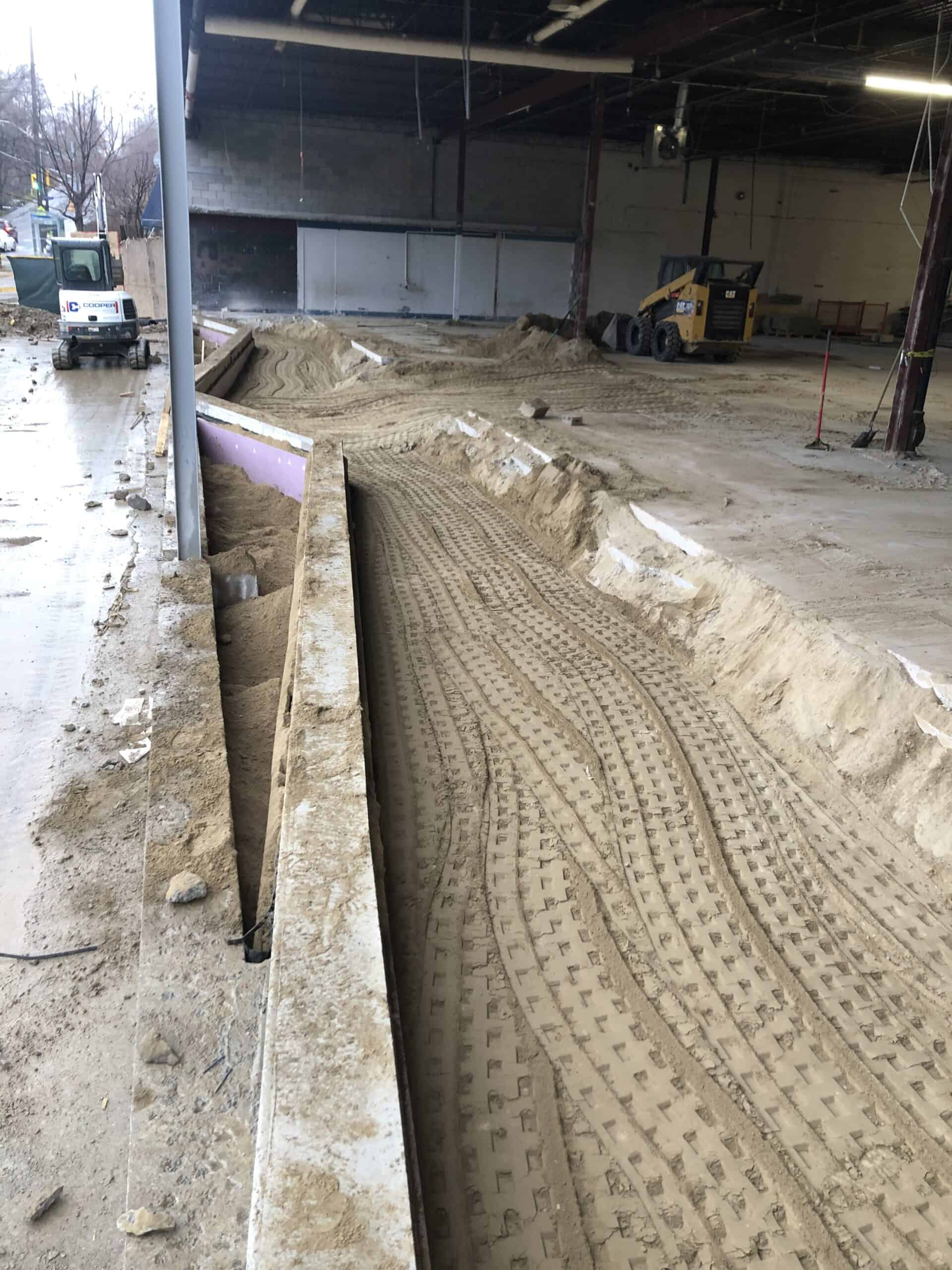

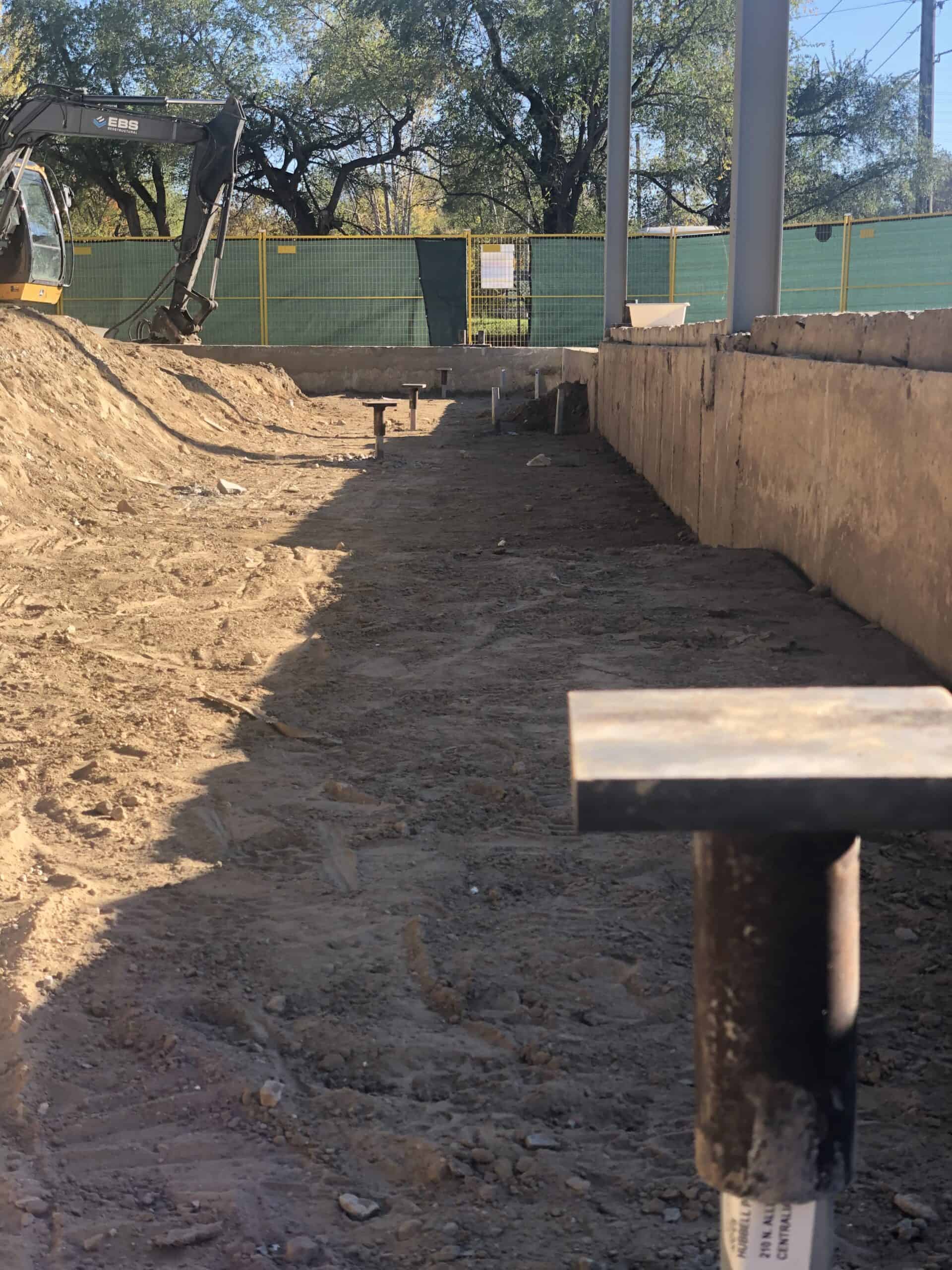

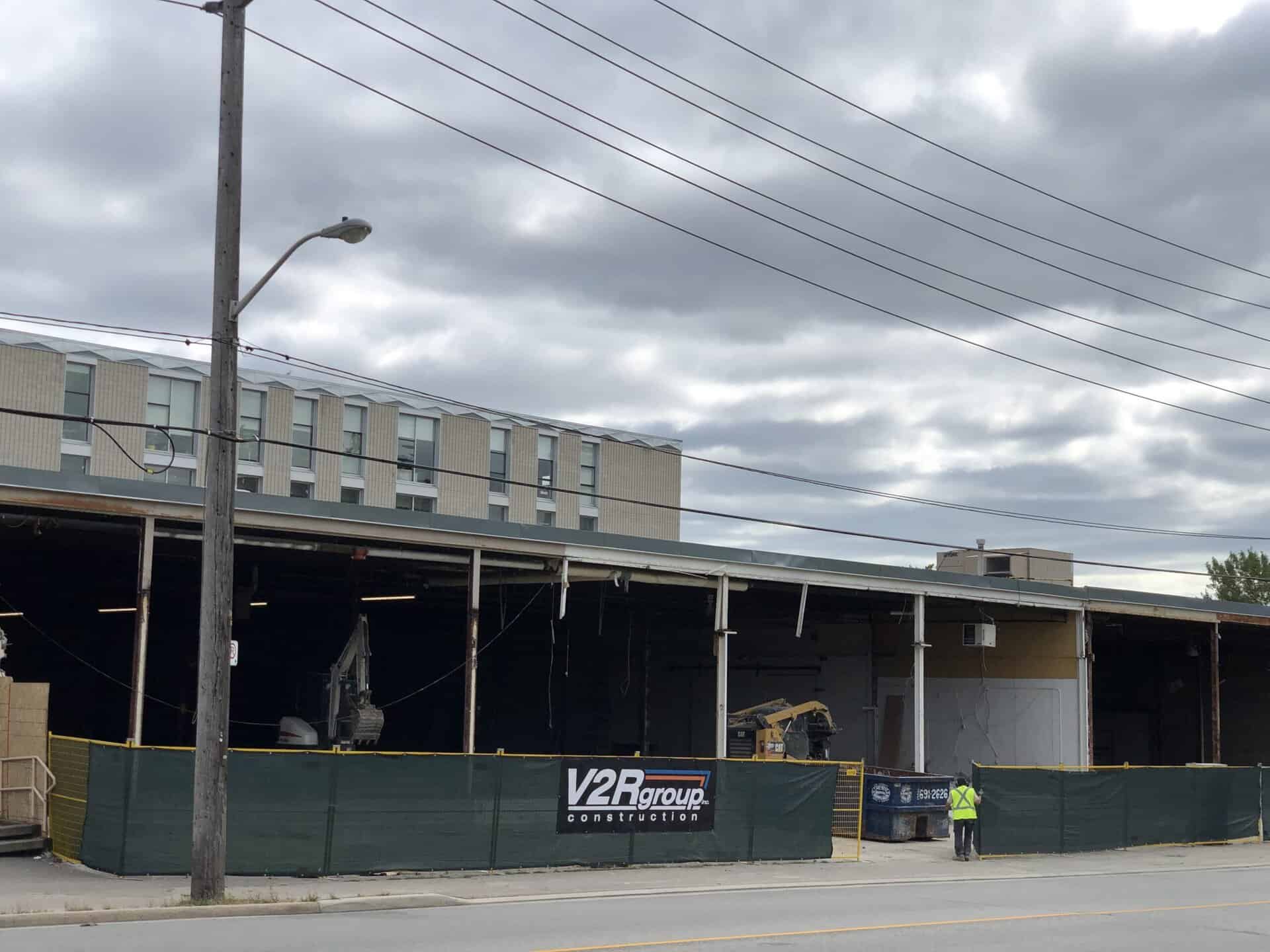

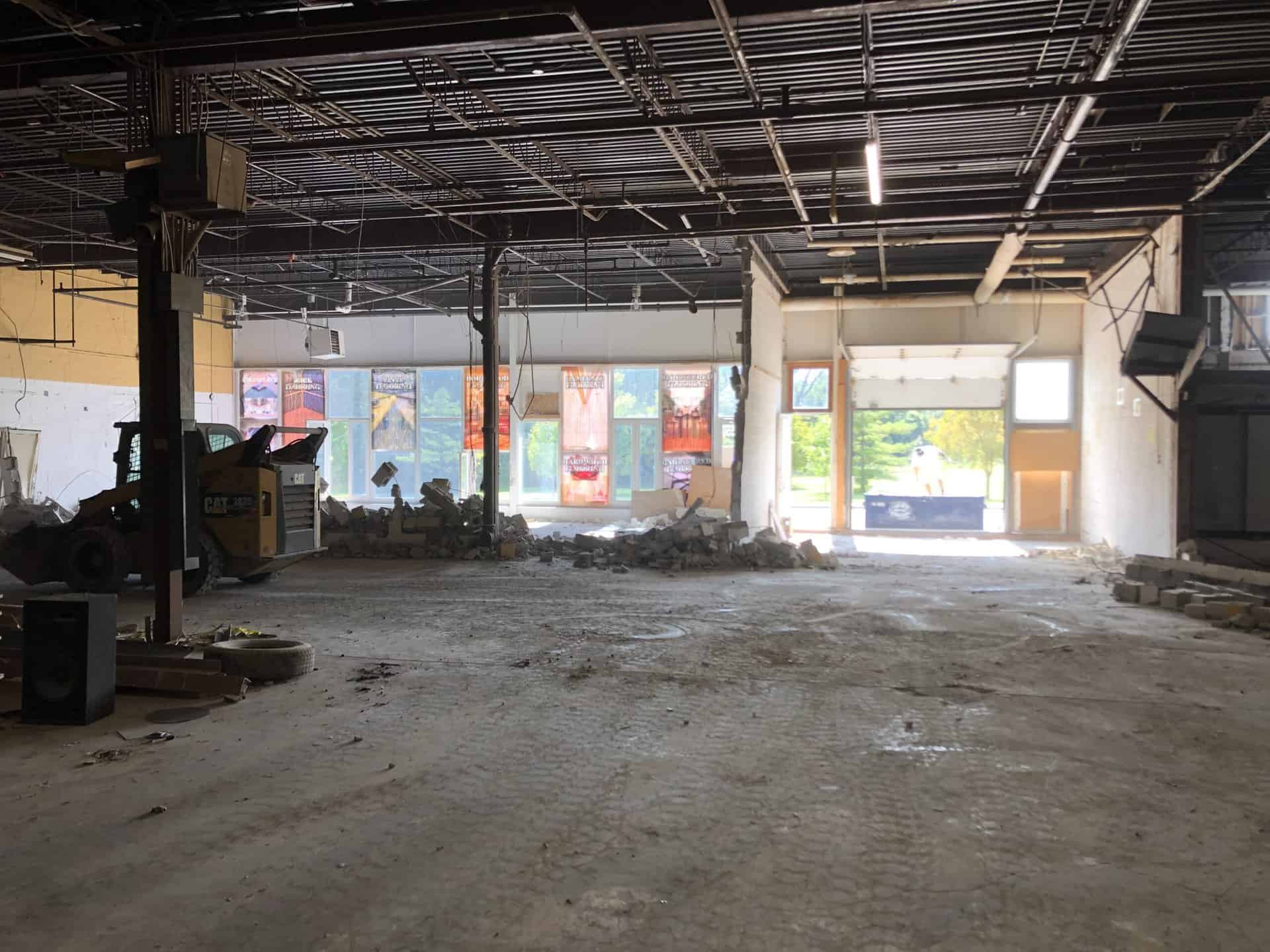

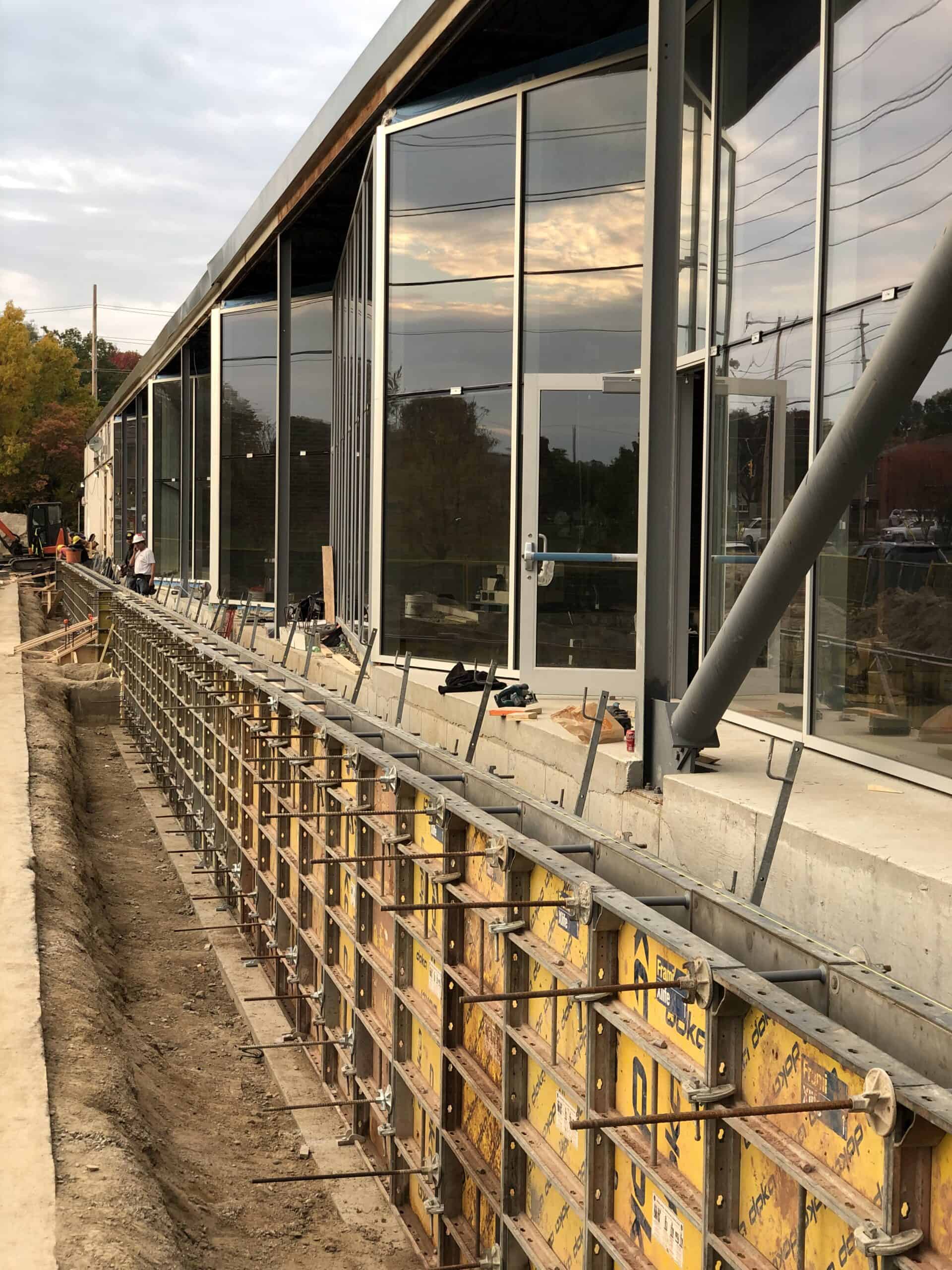

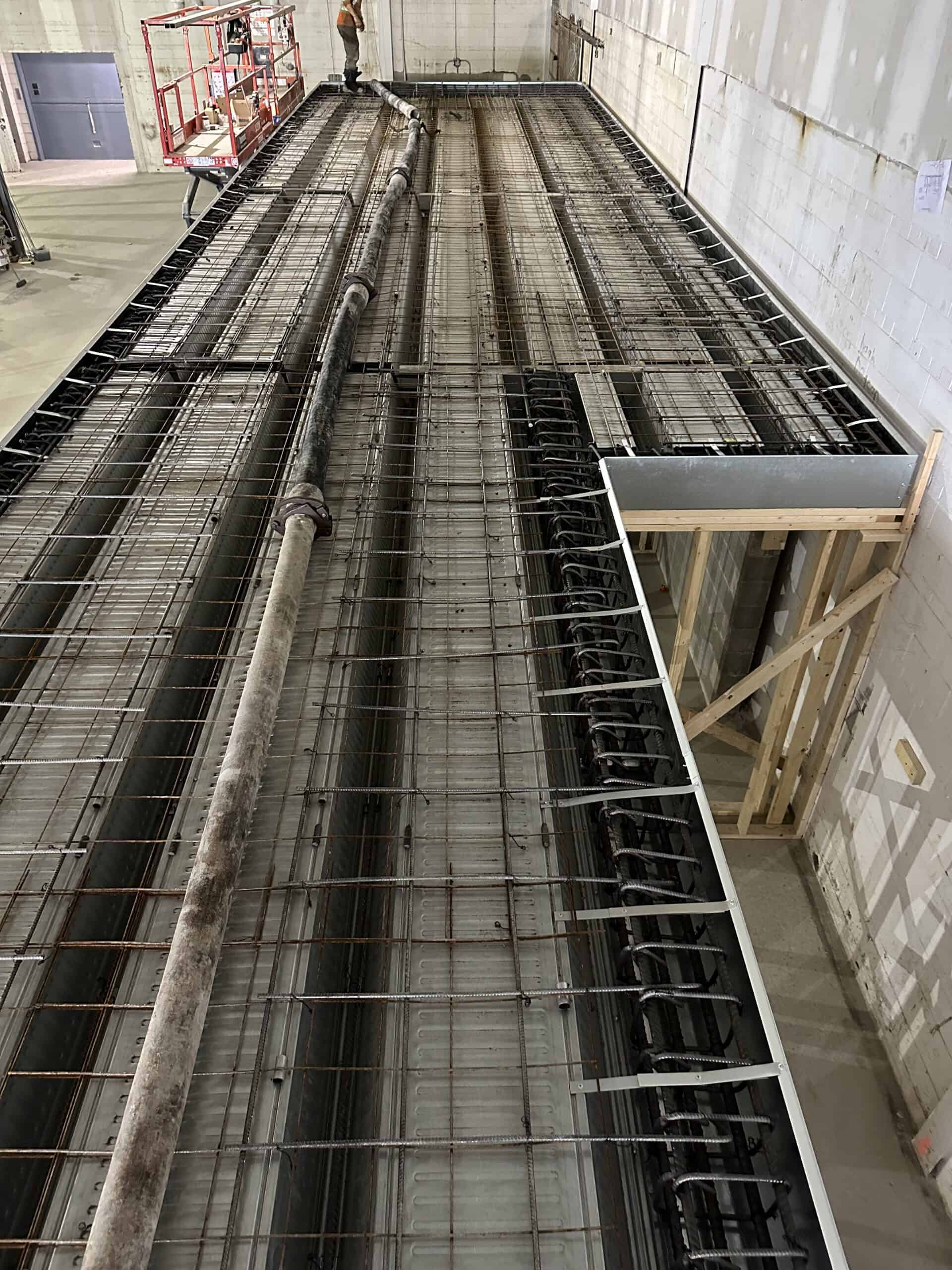

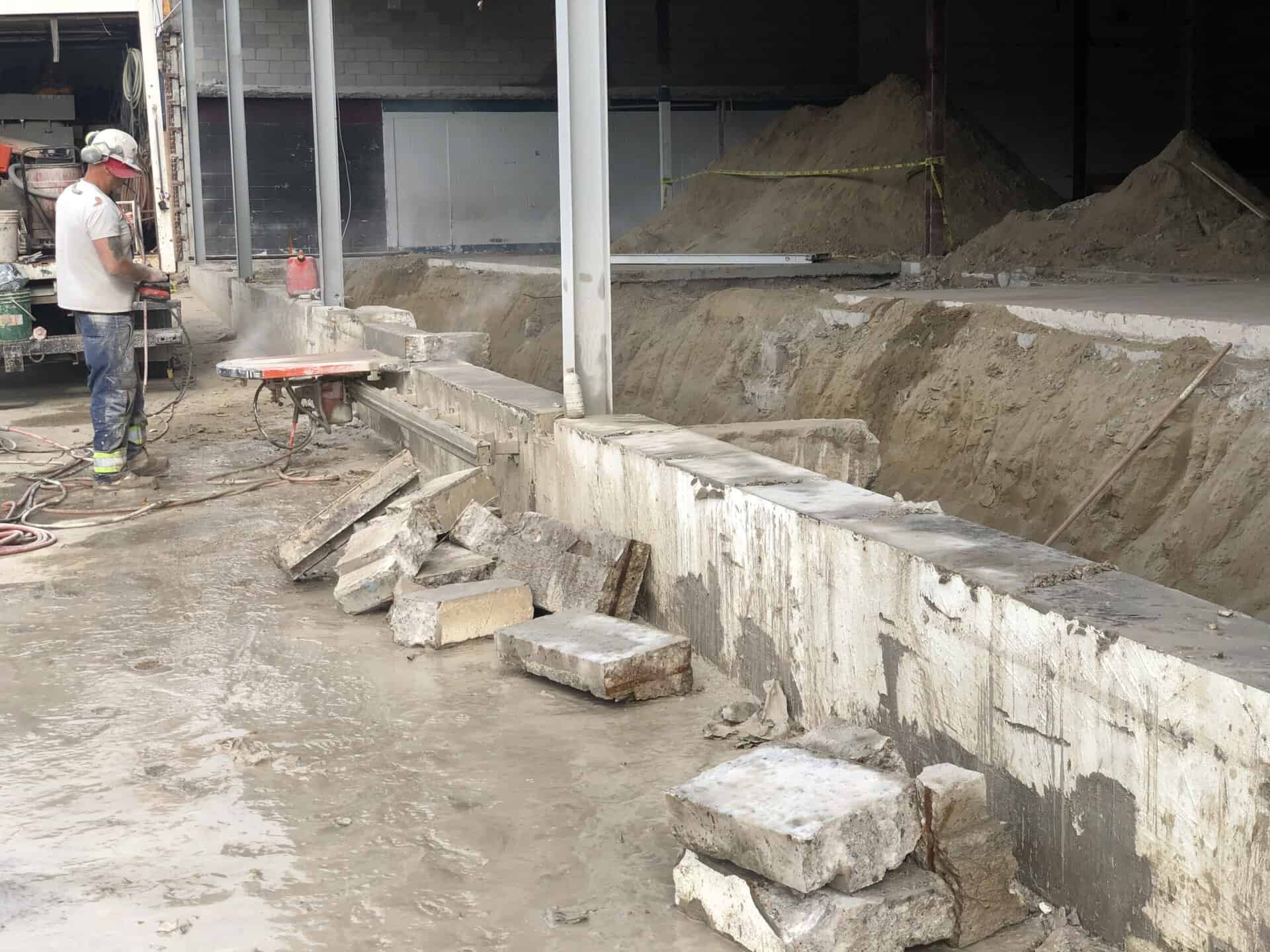

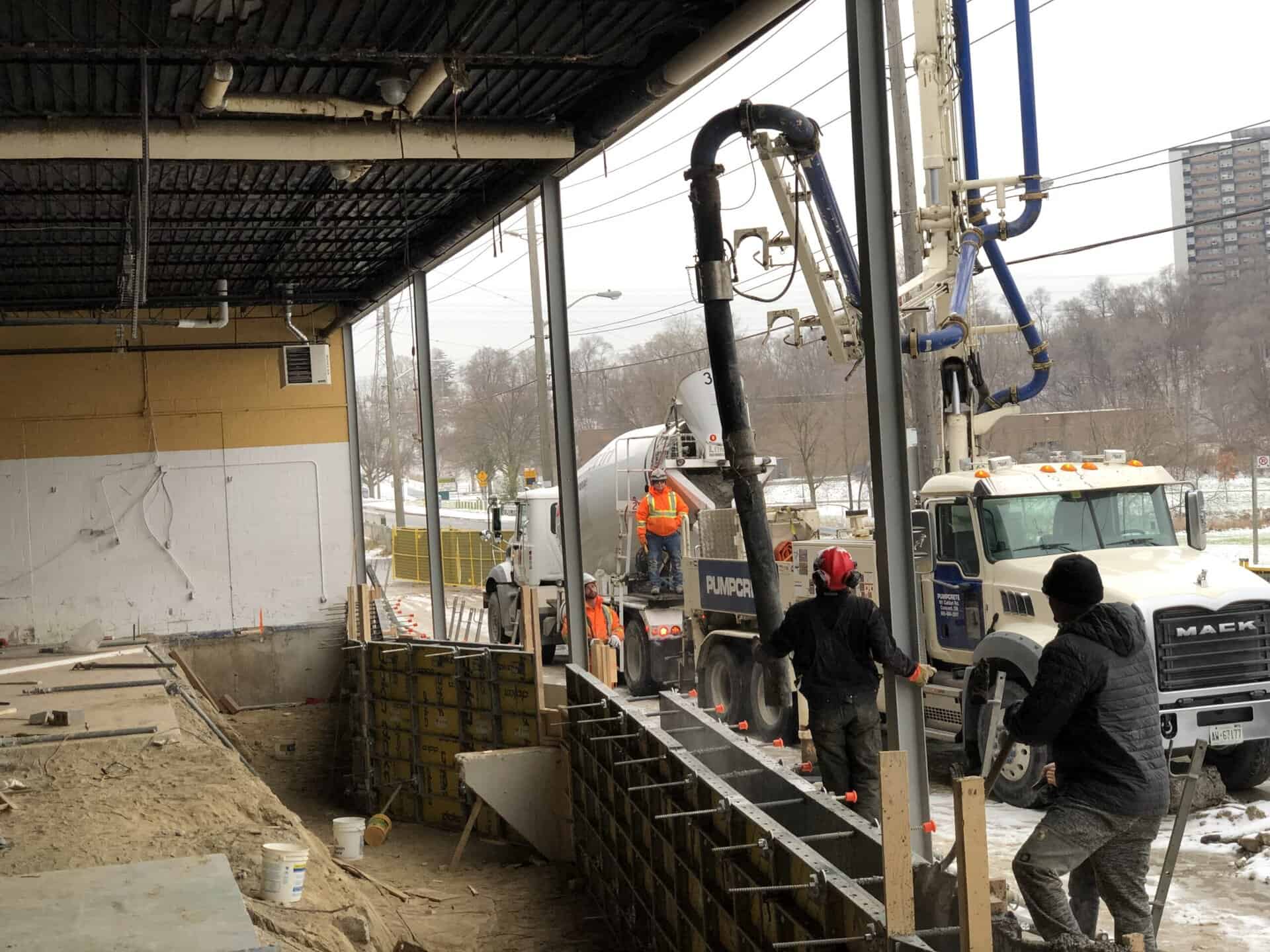

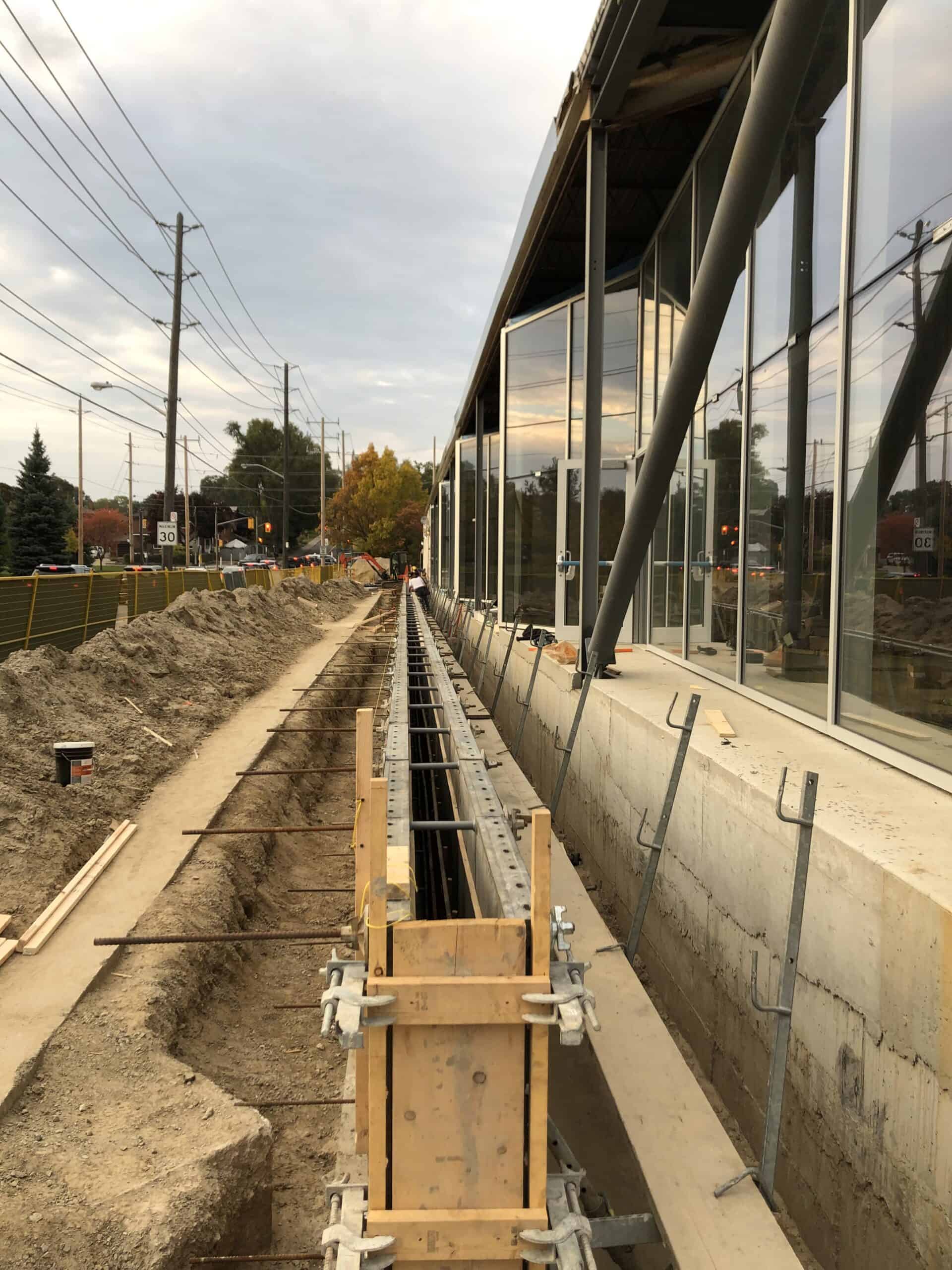

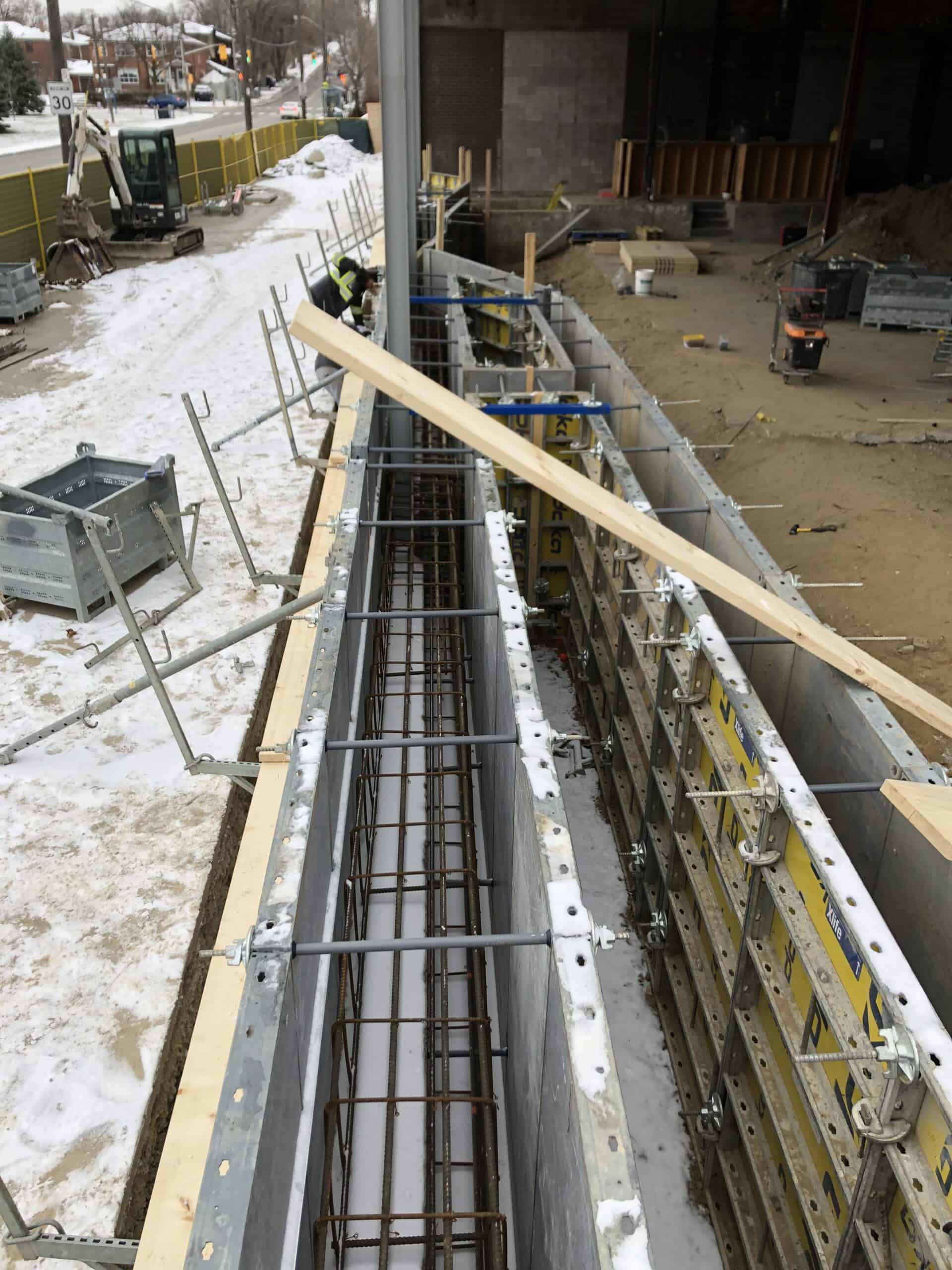

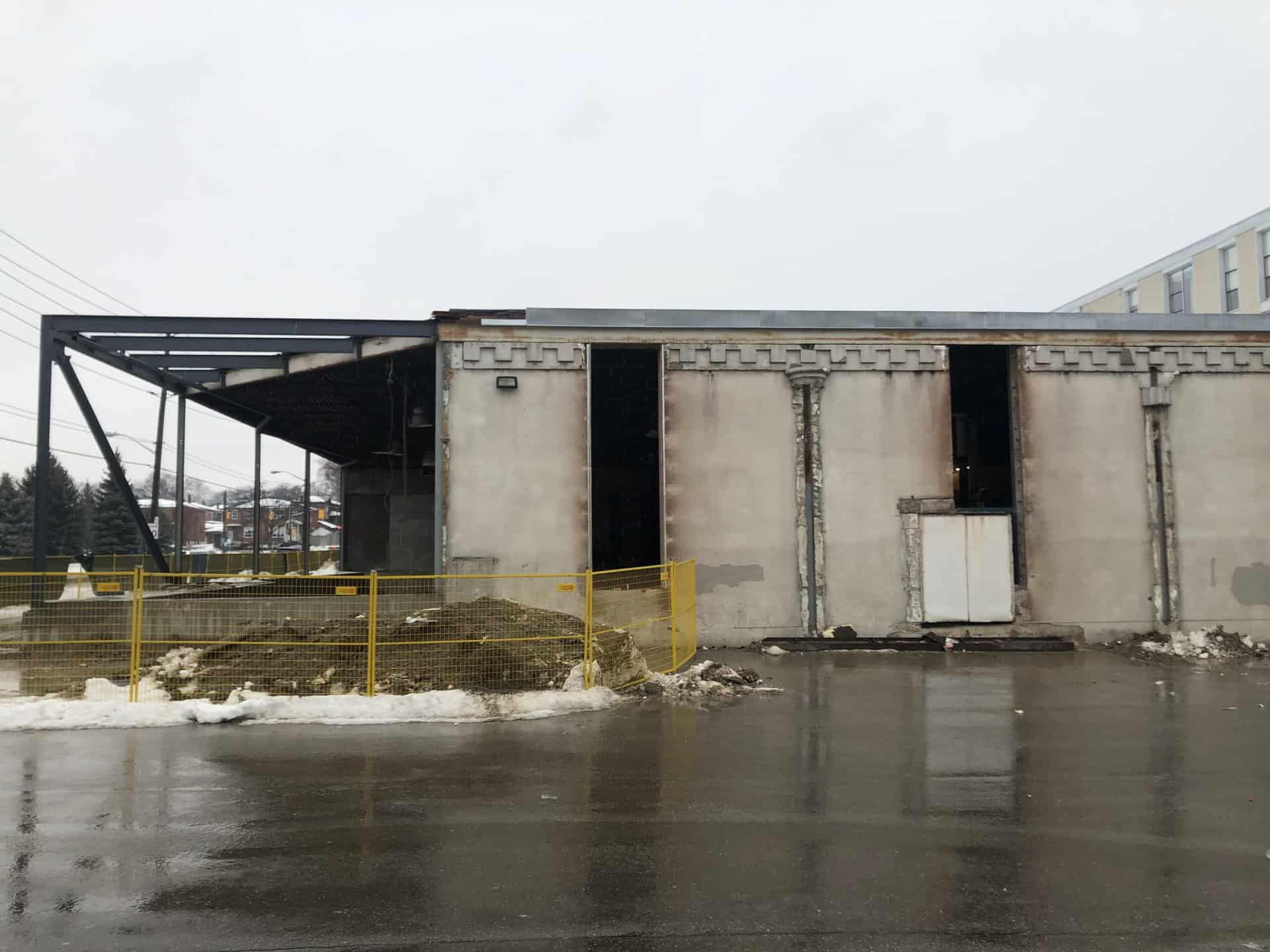

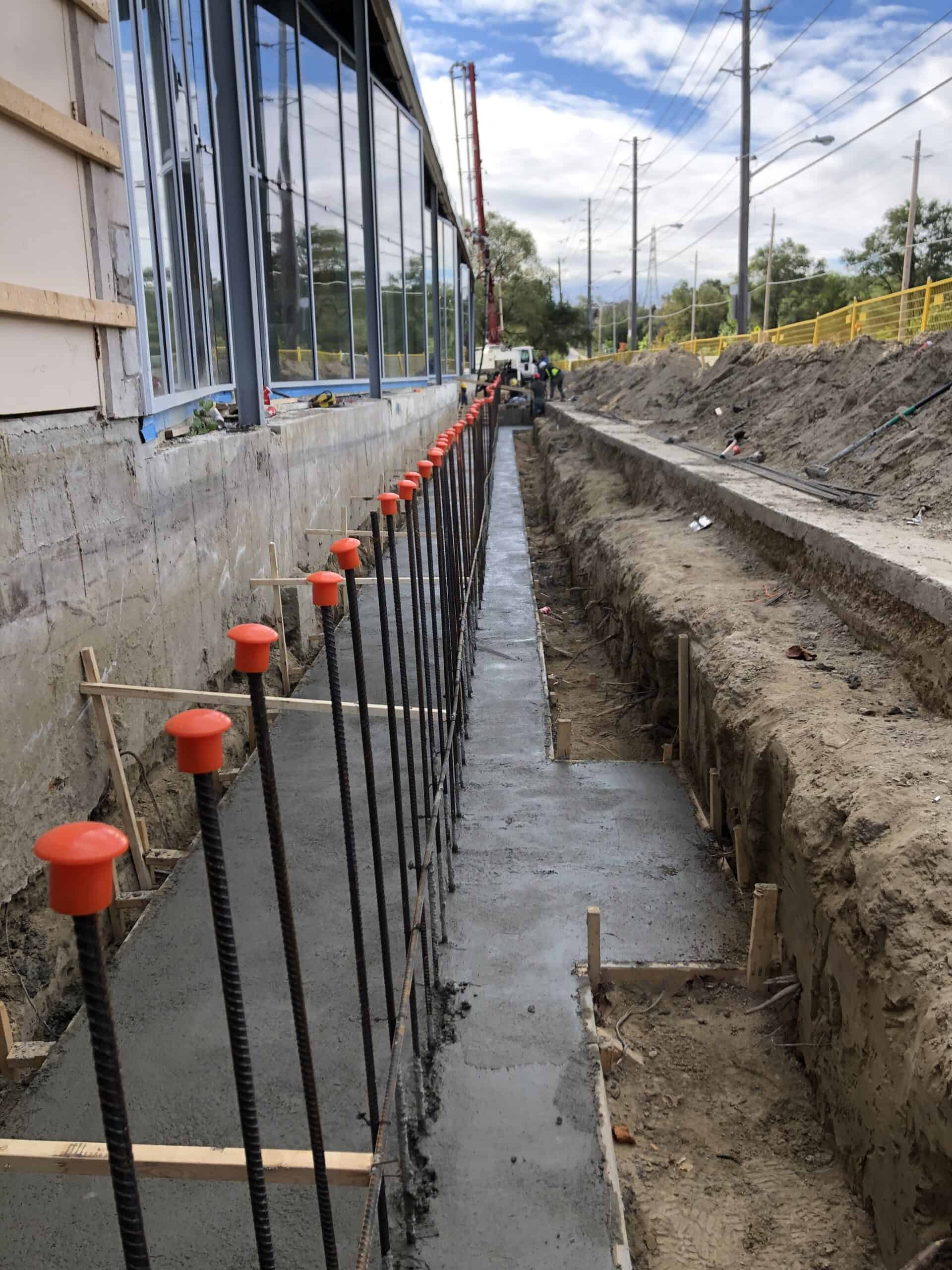

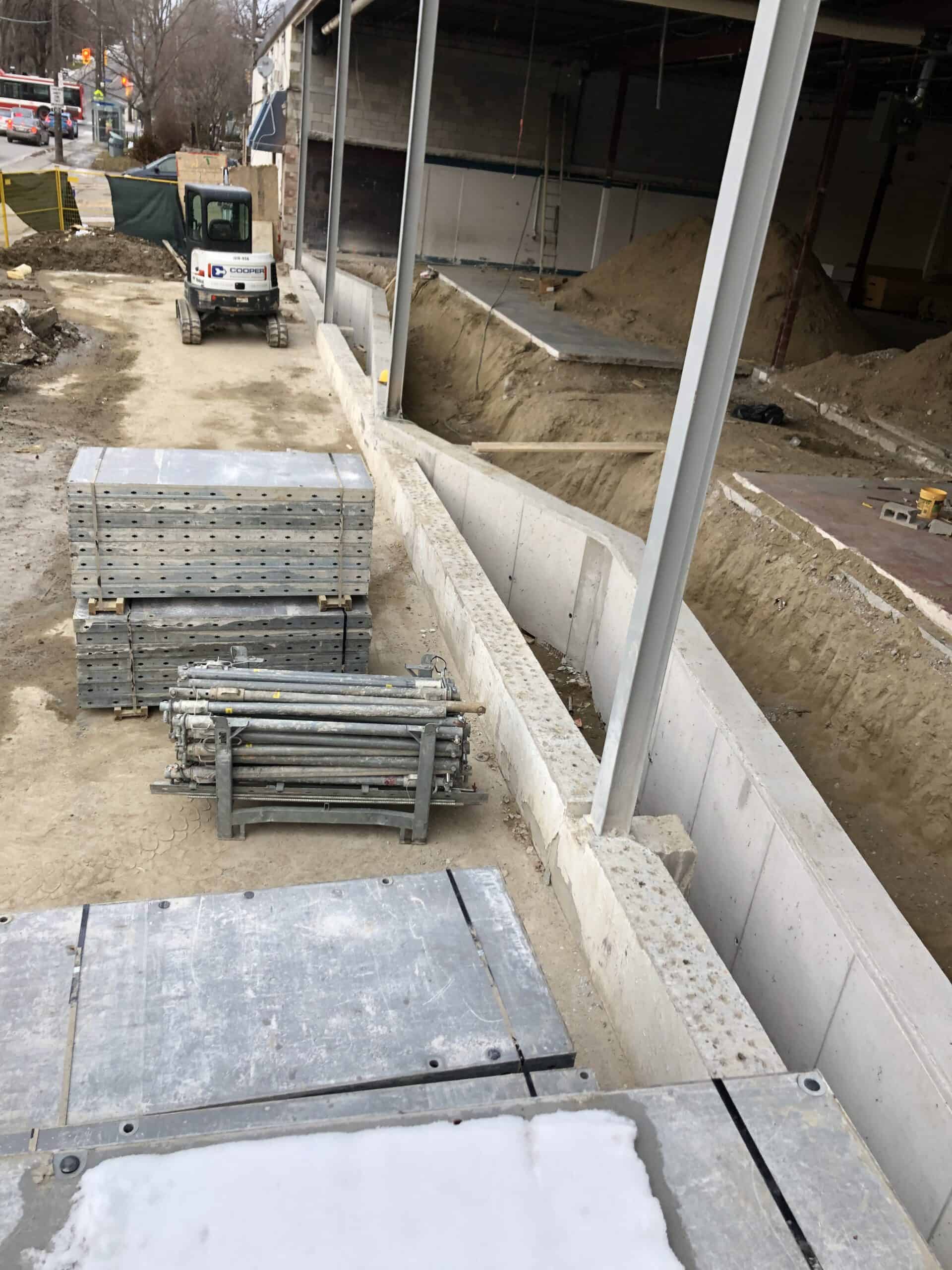

Following consultations with structural engineers and architects to ensure the design aligned with the existing structure, V2R initiated the project from early planning through to final finishes. We began by laterally bracing the existing walls designated to remain, preserving the building’s integrity during demolition and removal of the entire masonry façade. Due to the silt-heavy composition of the existing soils, helical piles were driven 30 meters deep after excavation, meeting torque requirements for structural stability. These piles were tied into extensive rebar-reinforced concrete grade beams and retaining walls, precisely aligned with the new façade layout and bearing on native soils and pile caps. After bracing and cutting the southern vertical window openings, new glazing was installed. To meet thermal performance standards, exterior insulation and stucco were applied to the remaining masonry walls and soffit—blending energy efficiency with a refreshed architectural finish.

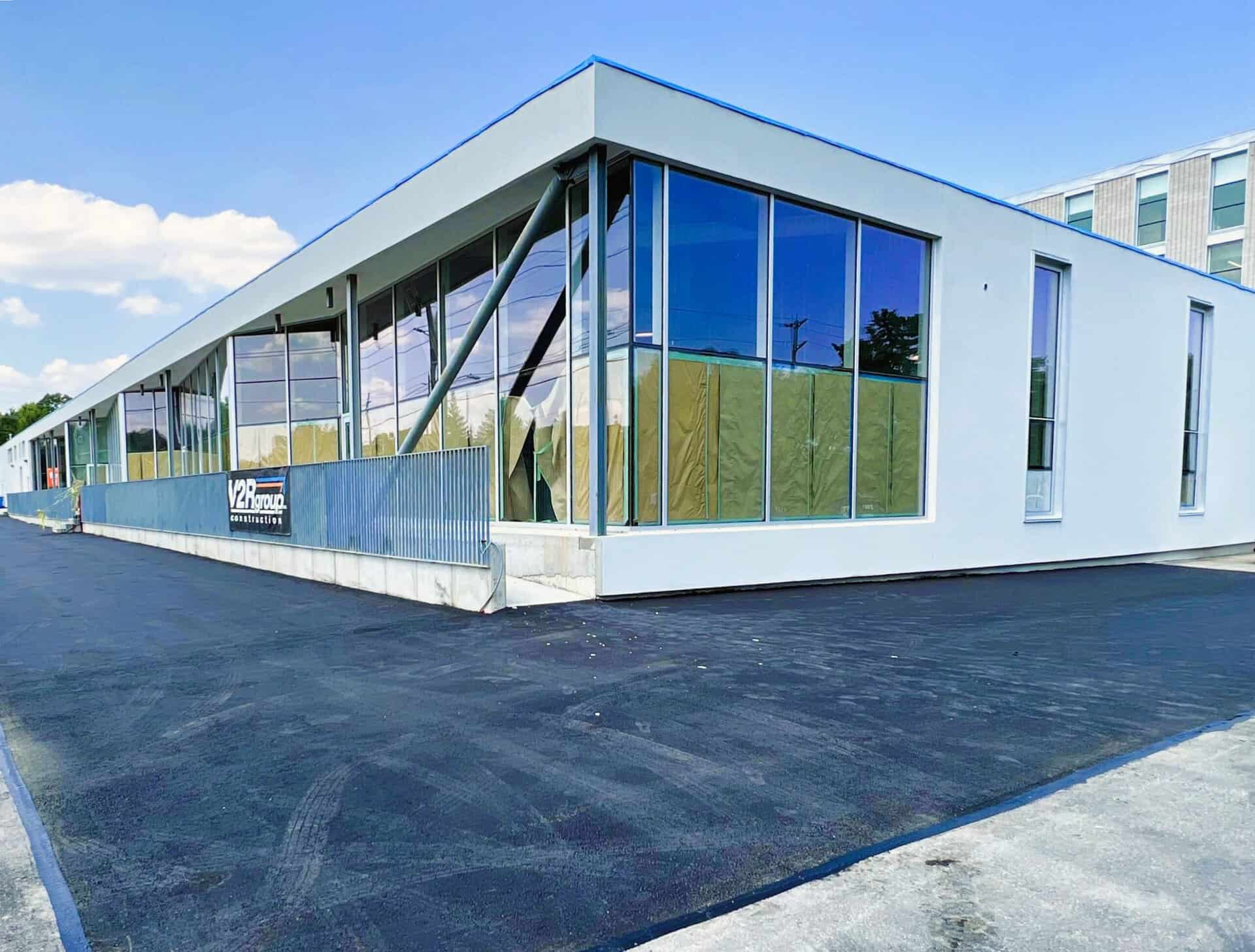

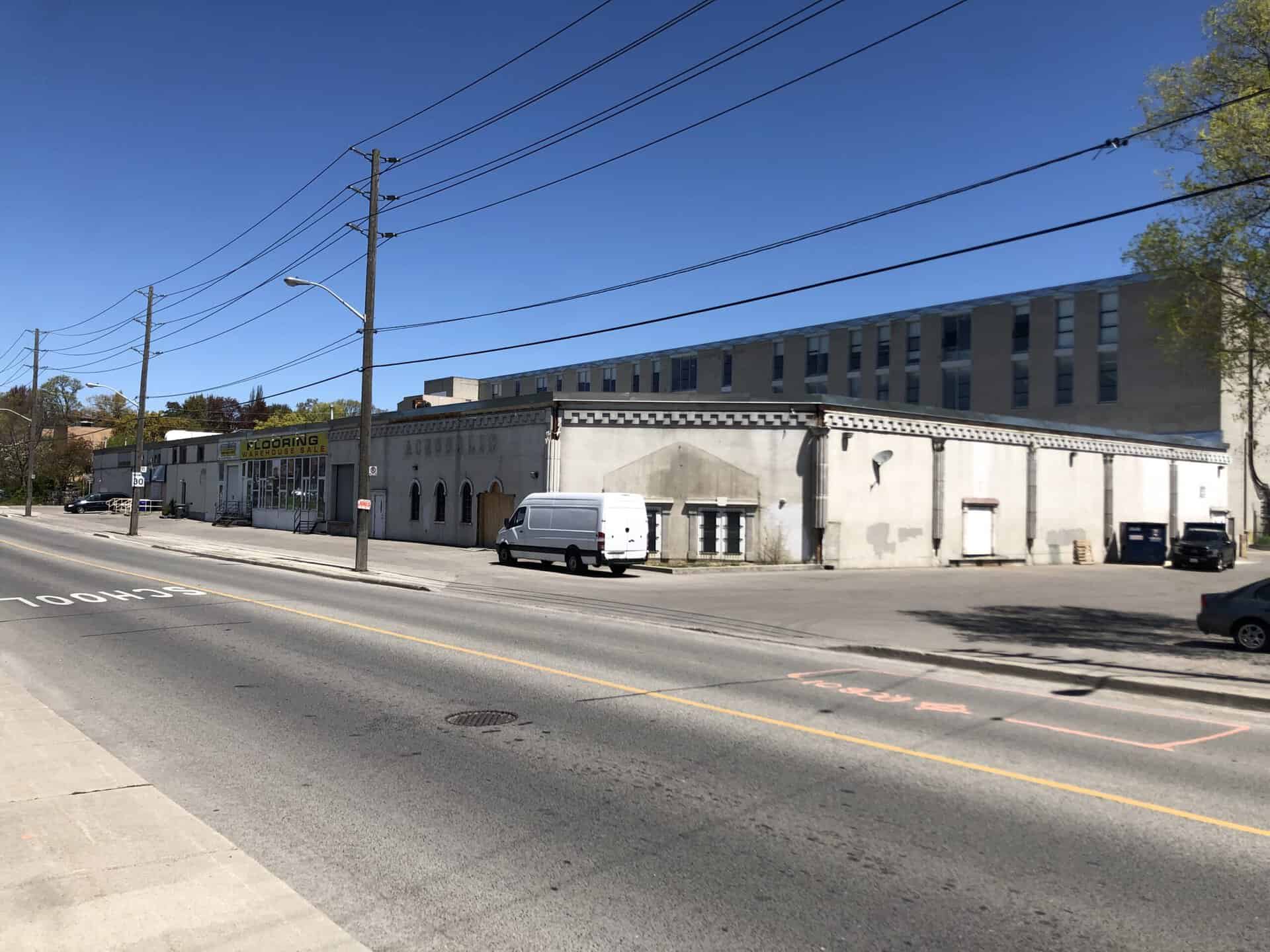

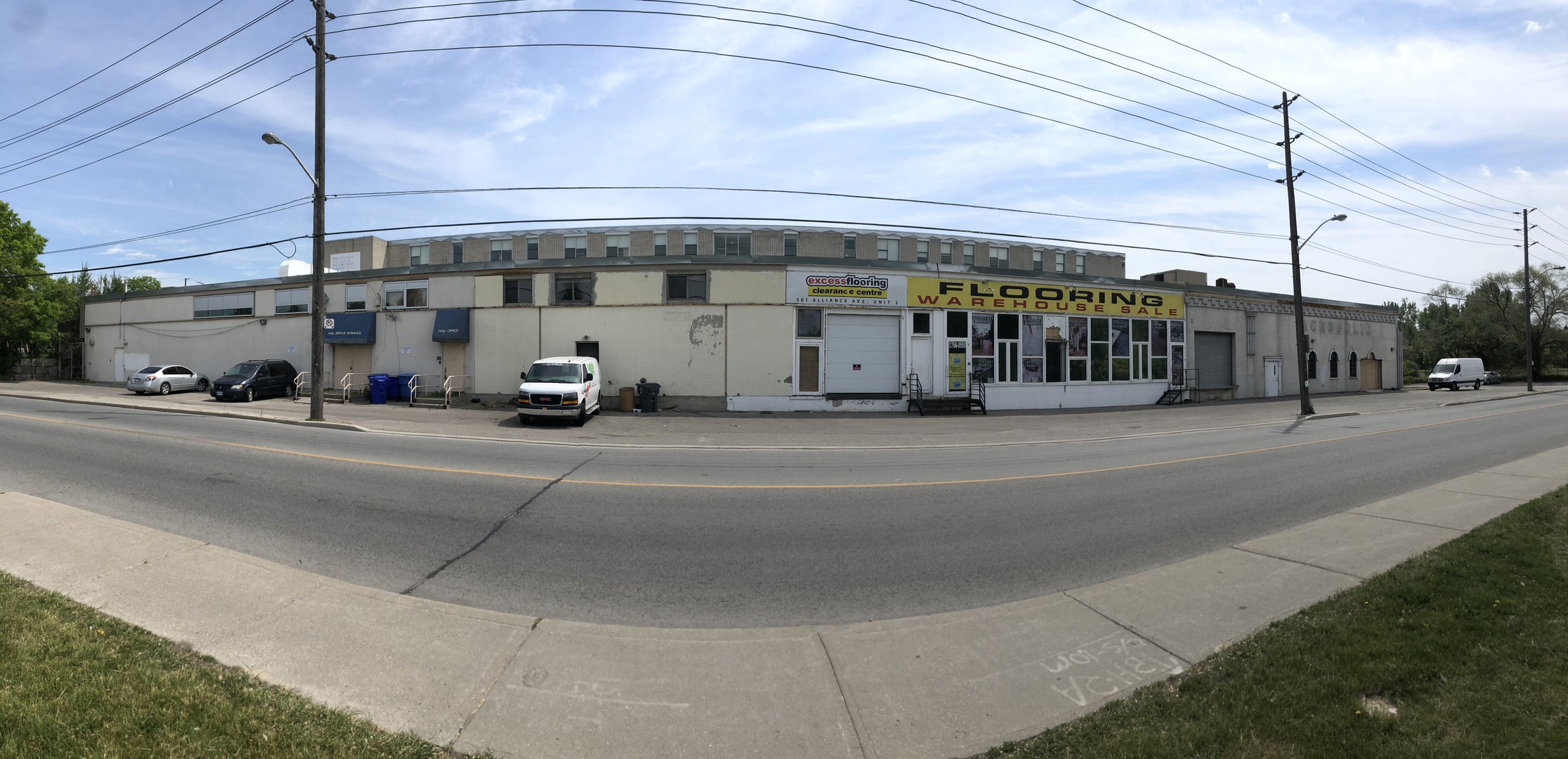

The plain stature of the existing building allowed Kohn Shnier Architects’ design to breathe captivating new life into this cornerstone of Rockcliffe Blvd.

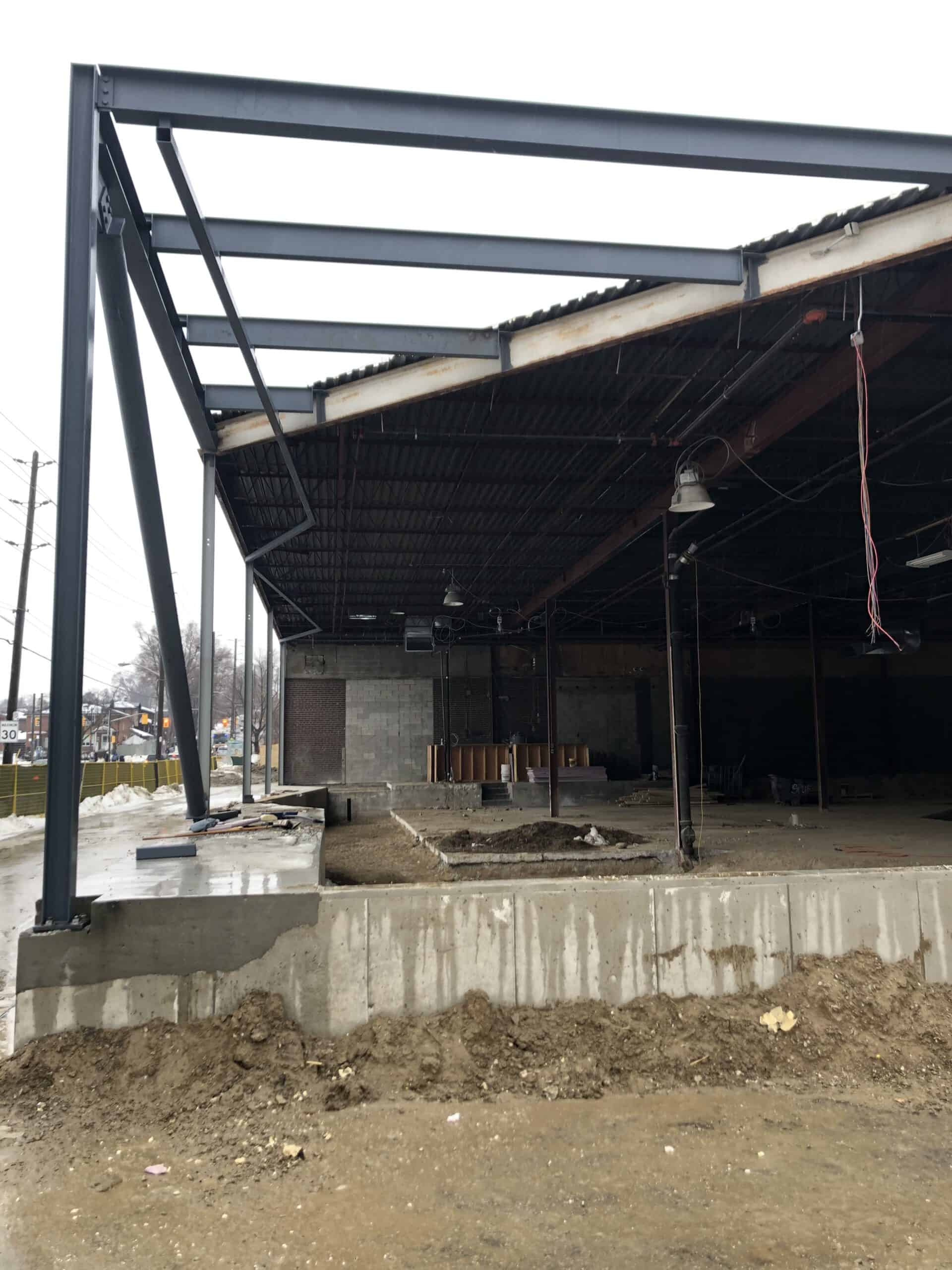

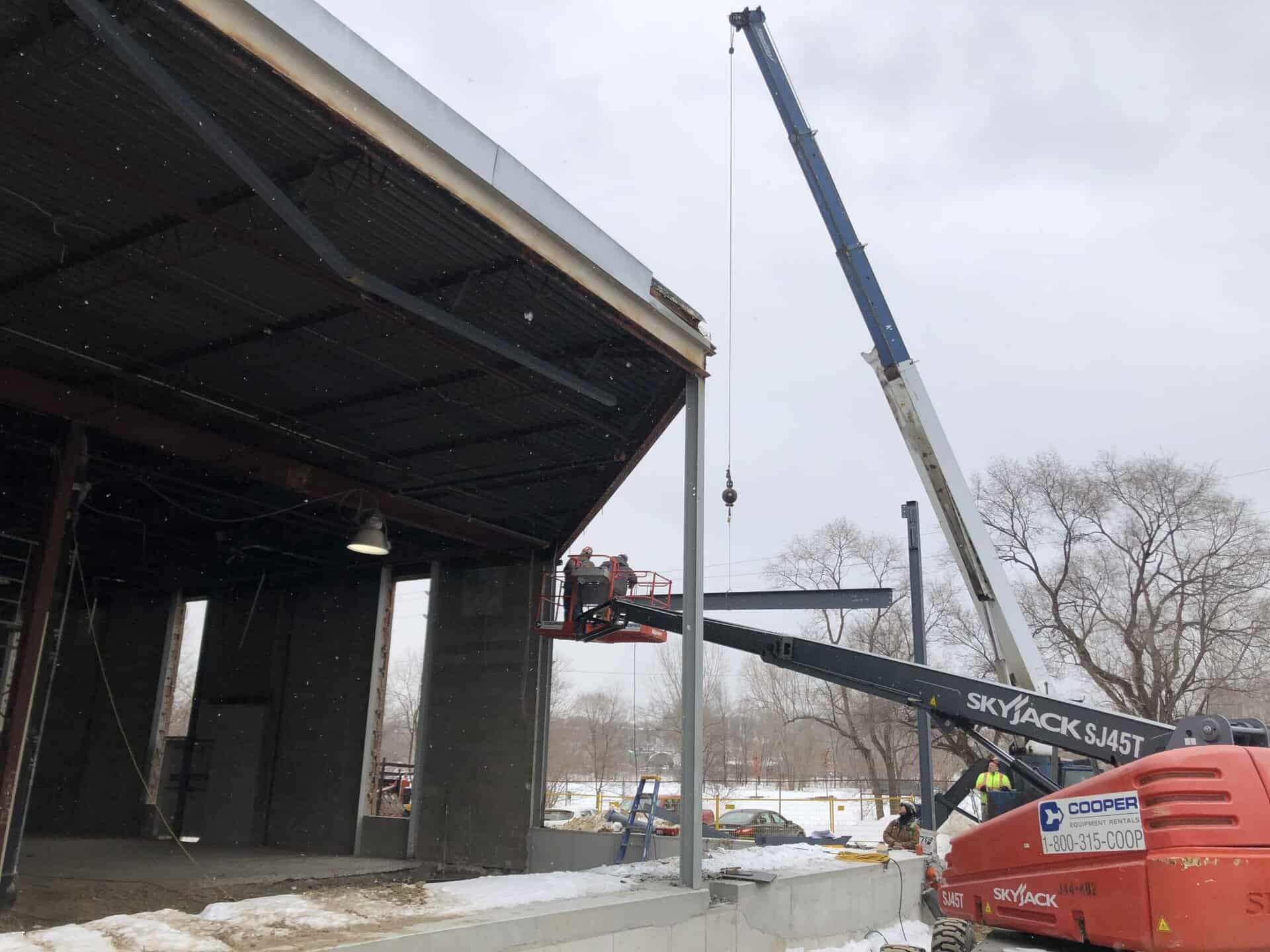

Extensive alterations to the existing structure required the addition of exposed lateral bracing, introducing a distinctive architectural element to the build.

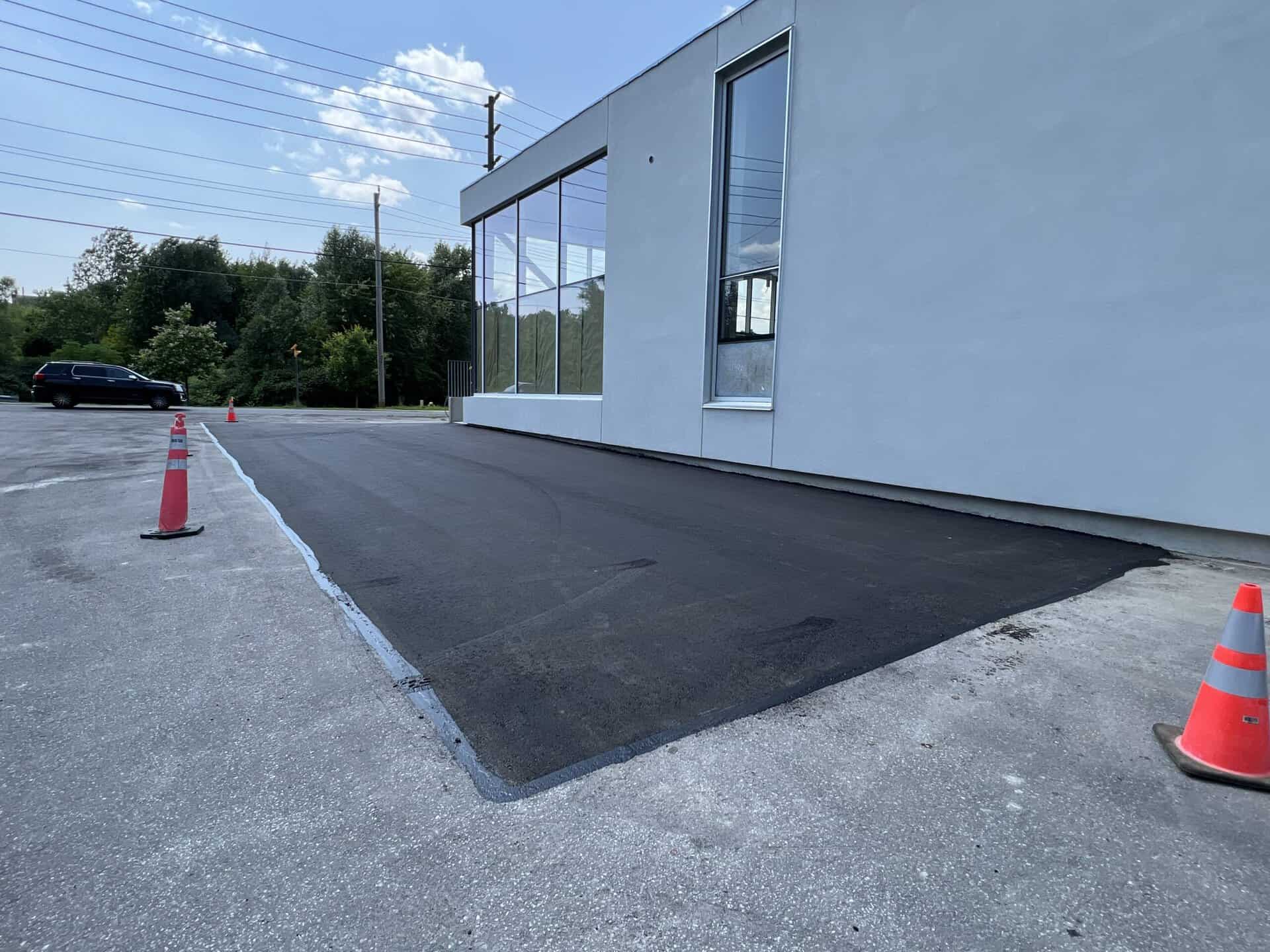

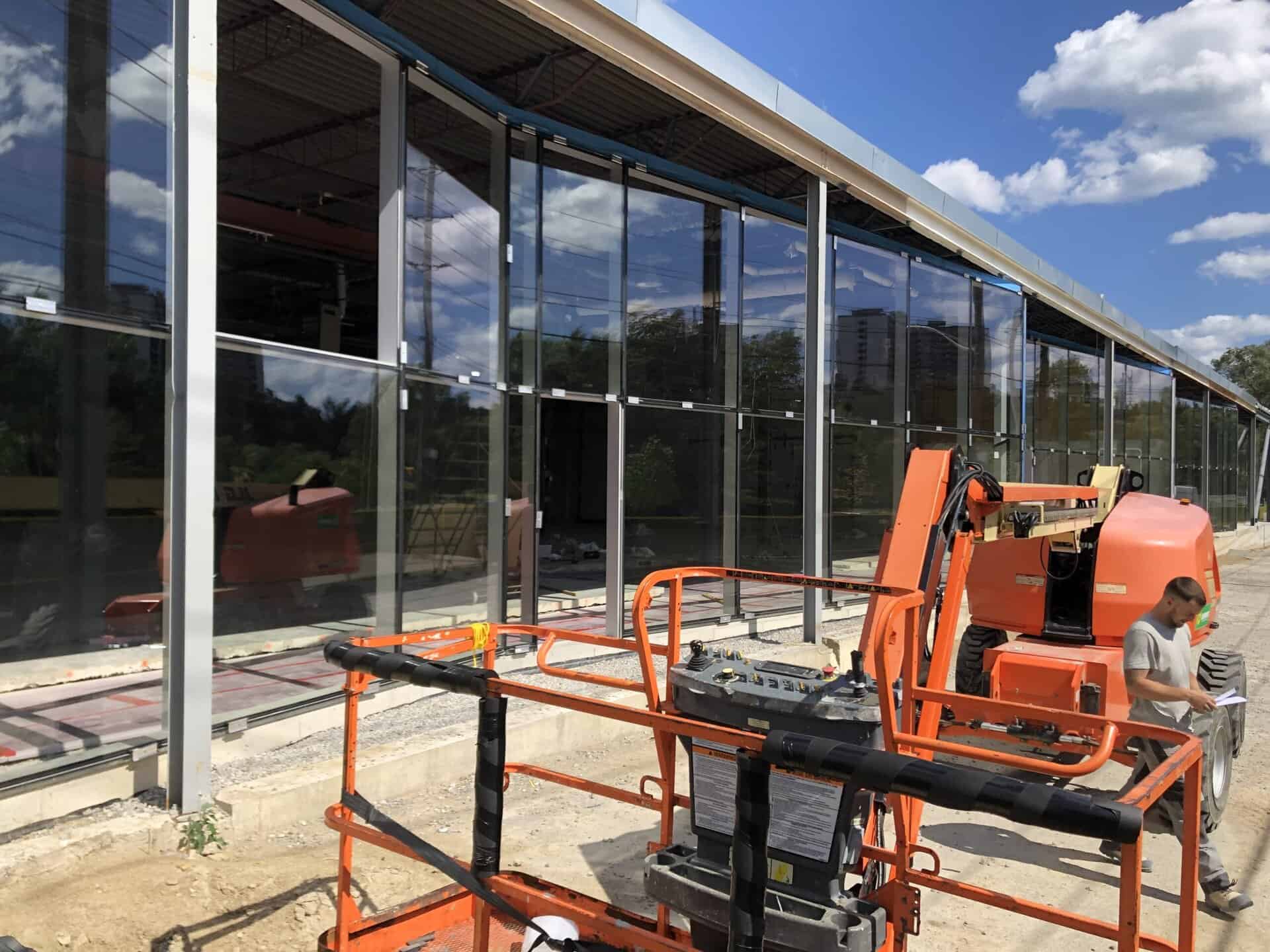

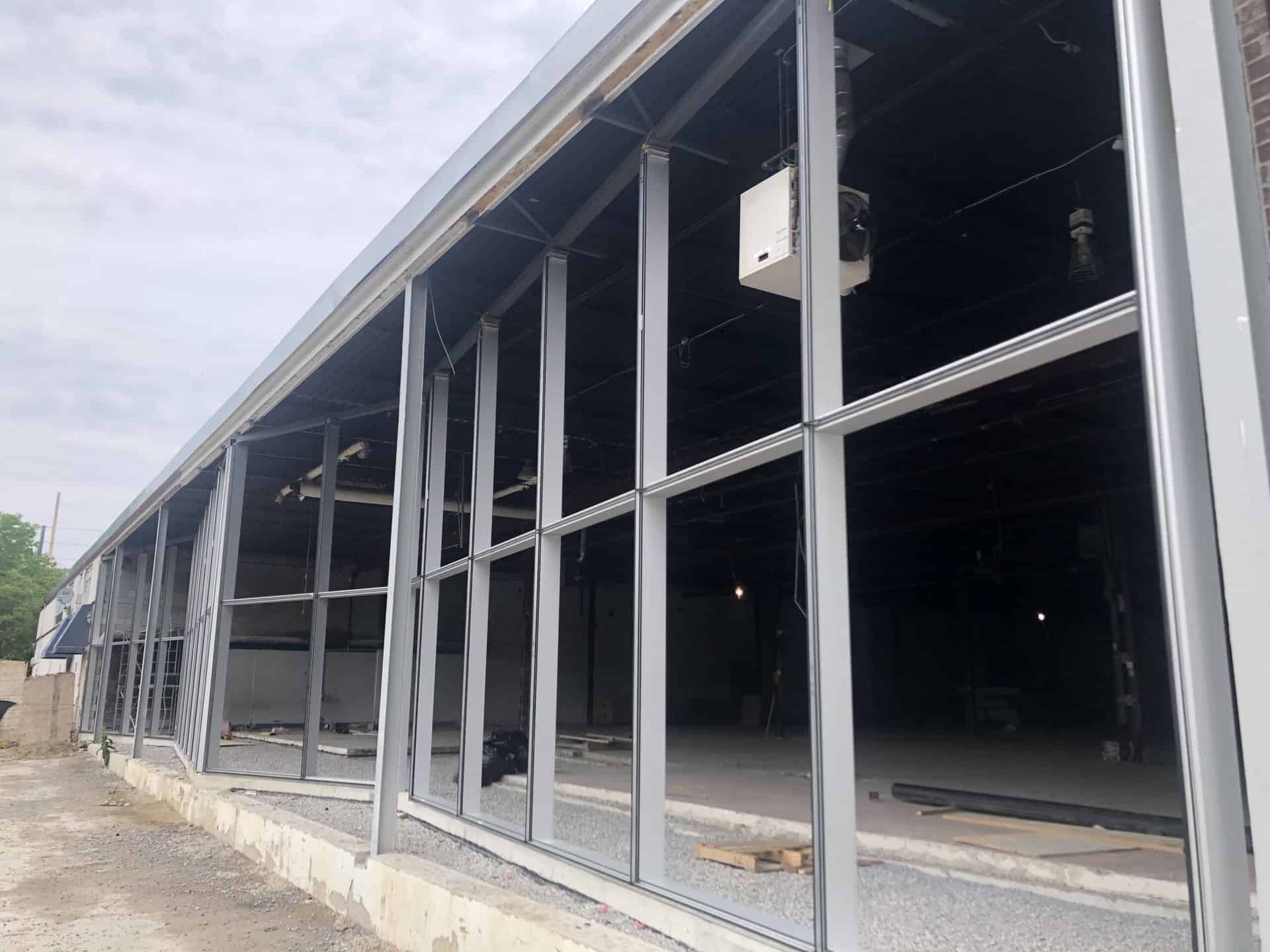

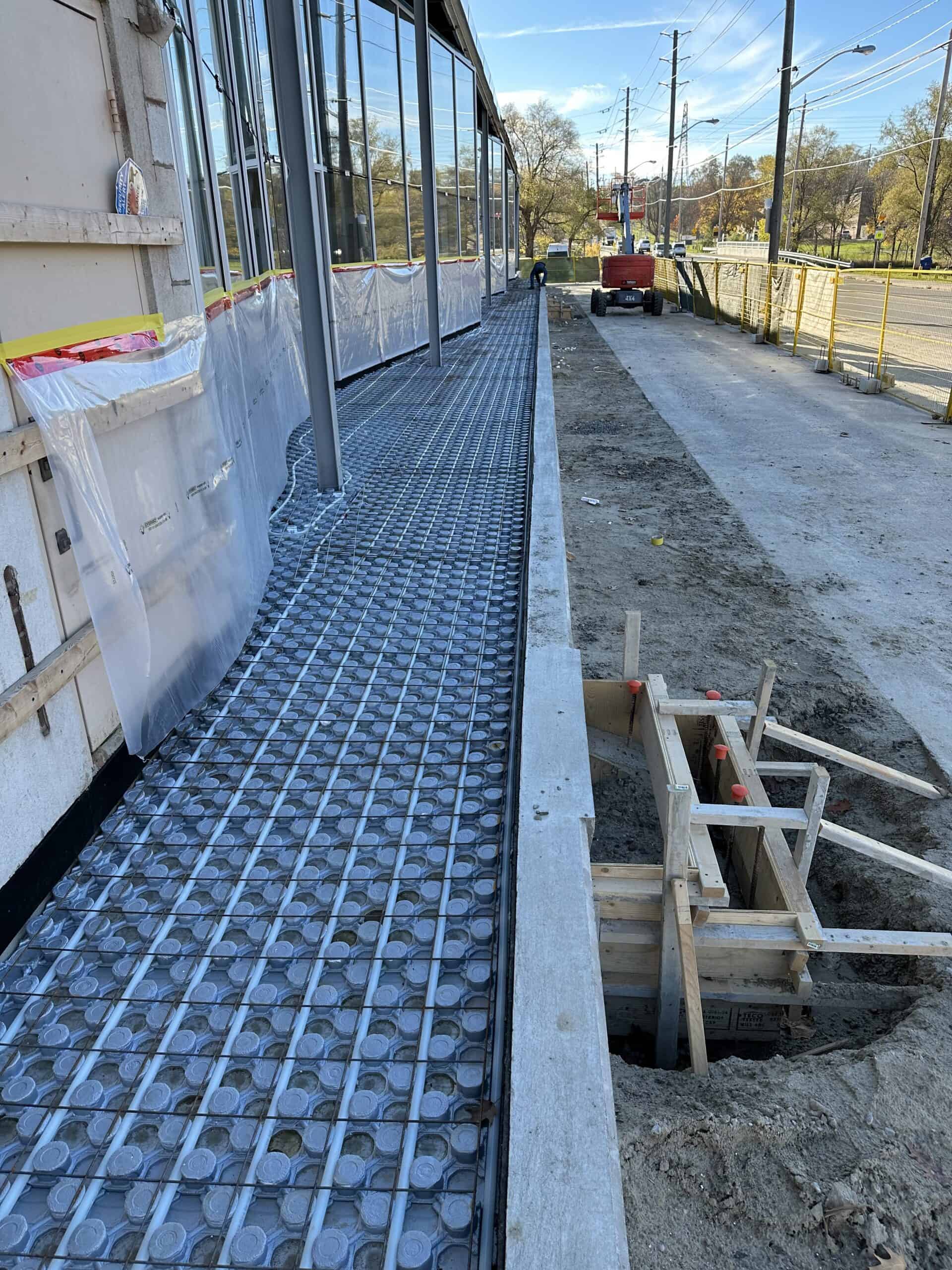

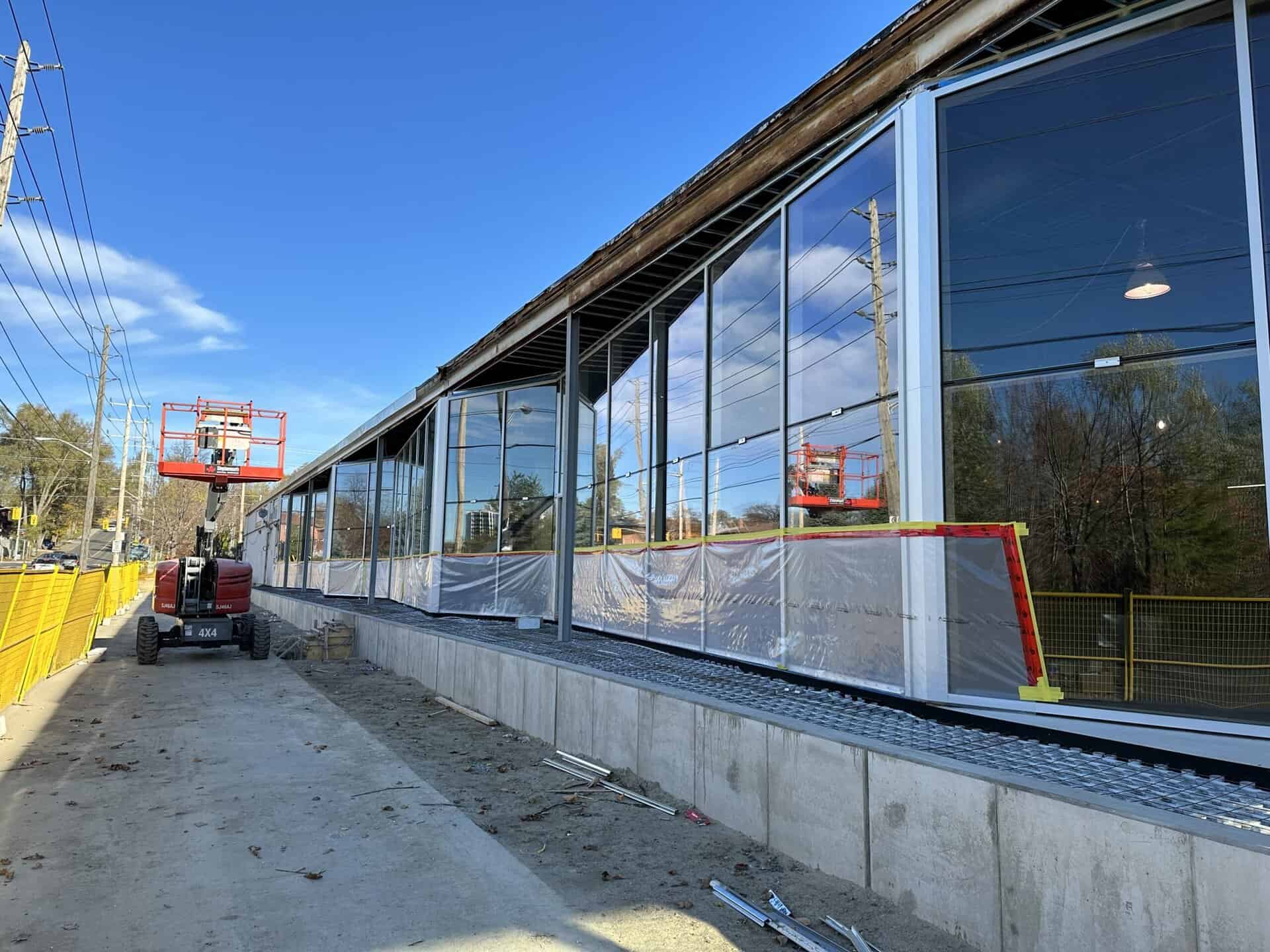

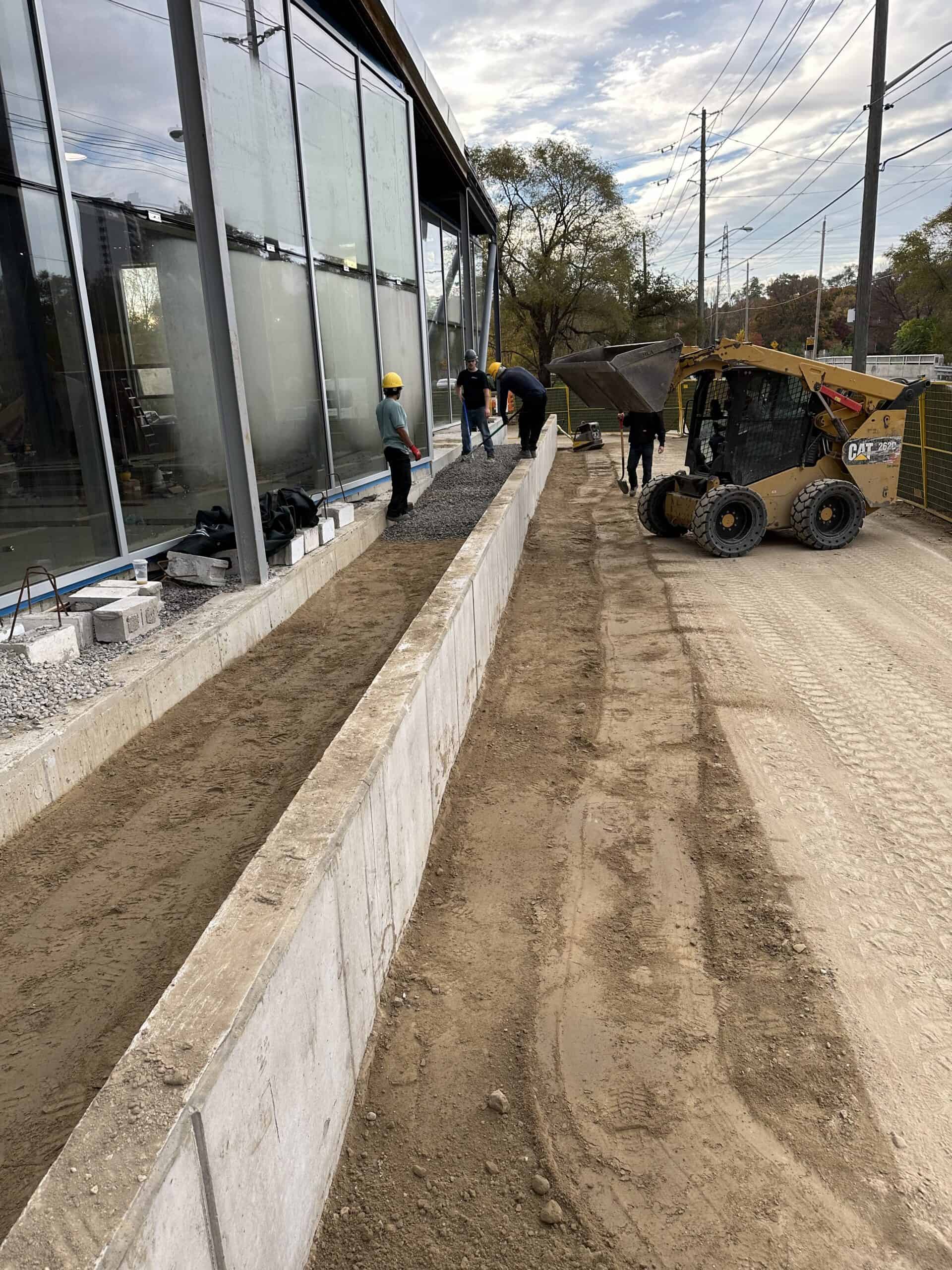

The project incorporated new gross building area, an articulating glazed curtain wall system, retaining walls, a barrier-free ramp, and a geothermally heated walkway. Each of these features demanded proactive risk management measures to ensure seamless and effective execution.
